Leírás

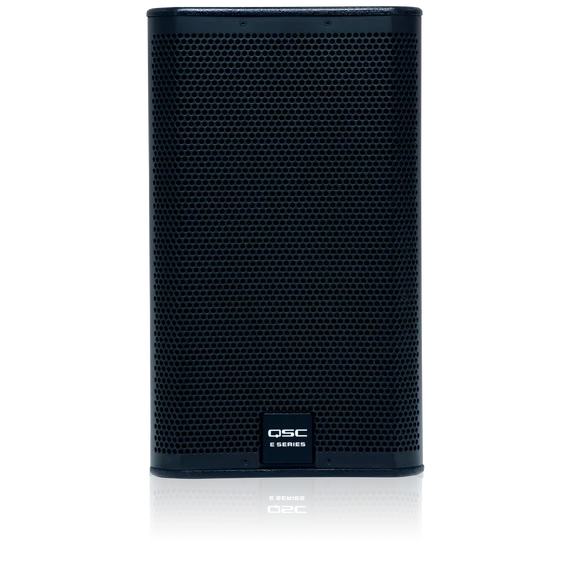

| Model | E110 |
|---|---|
| Configuration | 1 × 10-inch, 2-way, non-powered |
| Frequency Response (-6 dB) | 68Hz – 20kHz |
| Frequency Range (-10 dB) | 50Hz - 20kHz |
| Power capacity²: continuous/peak | 300 W / 1200 W |
| Sensitivity | 95 dB, 1 W @ 1 m |
| Coverage Angle | 85° conical DMT™ |
| Output1 (Peak SPL @ 1m) | 126 dB |
|
Drivers LF HF |
254 mm (10 in) driver with 64 mm (2.5 in) voice coil; 25 mm (1 in) exit, 45 mm (1.75 in) voice coil, compression driver |
| Nominal Impedance | 8Ω |
| Cross-over | Full-range only, 1.8 kHz |
| Input Connections | 2 × NL4, 1 × barrier strip |
| Enclosure | Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining. |
| Mounting and suspension | 9 × M8 suspension points, dual angle, 35 mm pole-socket |
| Speaker Dimensions (W×H×D) |
330 × 560 × 330 mm 13 × 22 × 13 in |
| Carton Dimensions (H×W×D) | 430 × 430 × 660 mm 17 × 17 × 26 in |
| Net speaker weight | 20 kg / 44 lb |
| Shipping weight | 23 kg / 50 lb |
